Real Azure Administrator Associate AZ-102 Practice Questions

1. Testlet 1



Overview

Humongous Insurance is an insurance company that has three offices in Miami, Tokyo, and Bangkok. Each office has 5,000 users.



Active Directory Environment

Humongous has a single-domain Active Directory forest named humongousinsurance.com. The functional level of the forest is Windows Server 2012.

You recently provisioned an Azure Active Directory (Azure AD) tenant.



Network Infrastructure

Each office has a local data center that contains all the servers for that office. Each office has a dedicated connection to the Internet.

Each office has several link load balancers that provide access to the servers.



Active Directory Issue

Several users in humongousinsurance.com have UPNs that contain special characters.

You suspect that some of the characters are unsupported in Azure AD.



Licensing Issue

You attempt to assign a license in Azure to several users and receive the following error message: “Licenses not assigned. License assignment failed for one user.”

You verify that the Azure subscription has the available licenses.



Planned Changes

Humongous Insurance plans to open a new office in Paris. The Paris office will contain 1,000 users who will be hired during the next 12 months. All the resources used by the Paris office users will be hosted in Azure.



Planned Azure AD Infrastructure

The on-premises Active Directory domain will be synchronized to Azure AD.

All client computers in the Paris office will be joined to an Azure AD domain.



Planned Azure Networking Infrastructure

You plan to create the following networking resources in a resource group named All-Resources:

- Default Azure system routes that will be the only routes used to route traffic

- A virtual network named Paris-VNet that will contain two subnets named Subnet1 and Subnet2

- A virtual network named ClientResources-VNet that will contain one subnet named ClientSubnet

- A virtual network named AllOffices-VNet that will contain two subnets named Subnet3 and Subnet4.

You plan to enable peering between Paris-VNet and AllOffices-VNet. You will enable the Use remote gateways setting for the Paris-VNet peerings.

You plan to create a private DNS zone named humongousinsurance.local and set the registration network to the ClientResources-VNet virtual network.

Each subnet will contain several virtual machines that will run either Windows Server 2012 R2. Windows Server 2016, or Red Hat Linux.



Department Requirements

Humongous Insurance identifies the following requirements for the company’s departments:

- Web administrators will deploy Azure web apps for the marketing departments. Each web app will be added to a separate resource group. The initial configuration of the web apps will be identical. The web administrators have permission to deploy web apps to resource groups.

- During the testing phase, auditors in the finance department must be able to review all Azure costs from the past week.



Authentication Requirements

Users in the Miami office must use Azure Active Directory Seamless Single Sign-on (Azure AD Seamless SSO) when accessing resources in Azure.



You need to prepare the environment to meet the authentication requirements.

Which two actions should you perform? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

2. You need to define a custom domain name for Azure AD to support the planned infrastructure.

Which domain name should you use?

3. Which blade should you instruct the finance department auditors to use?

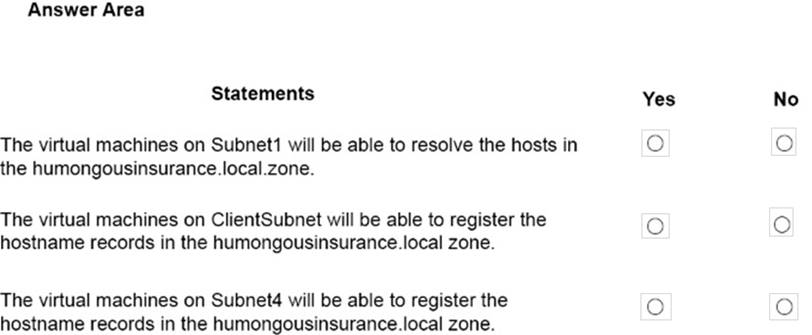

4. HOTSPOT

You are evaluating the name resolution for the virtual machines after the planned implementation of the Azure networking infrastructure. For each of the following statements, select Yes if the statement is true. Otherwise, select No.

5. http://www.fabrikam.com will be load balanced across Pool22.

- ER1 must route traffic between the New York office and the platform as a service (PaaS) services in the East US Azure region, as long as ER1 is available.

- ER2 must route traffic between the Los Angeles office and the PaaS sevices in the West US region, as long as ER2 is available.

- ER1 and ER2 must be configured to fail over automatically.



Application Requirements

App2 must be able to connect directly to the private IP addresses of the Azure virtual machines. App2 will be deployed directly to an Azure virtual network.

Inbound and outbound communications to App1 must be controlled by using NSGs.



Pricing Requirements

ADatum identifies the following pricing requirements:

- The cost of App1 and App2 must be minimized.

- The transactional charges of Azure Storage account must be minimized.

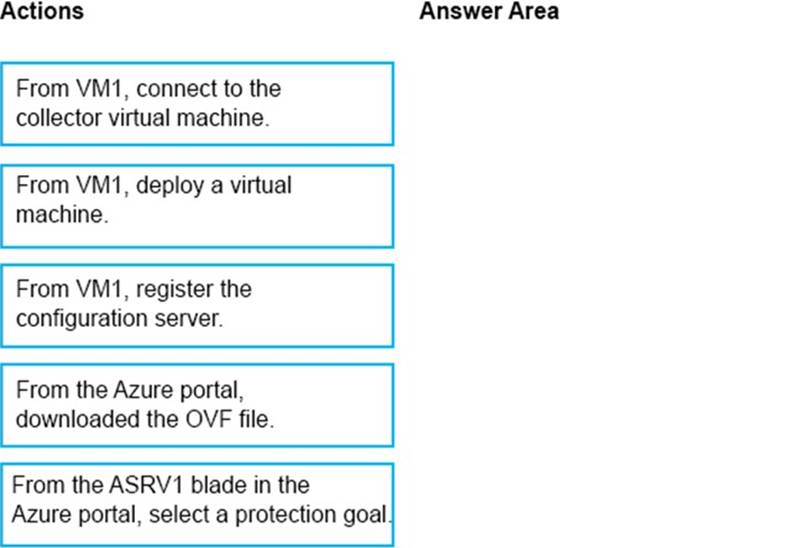

DRAG DROP

You need to prepare the New York office infrastructure for the migration of the on-premises virtual machines to Azure.

Which four actions you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

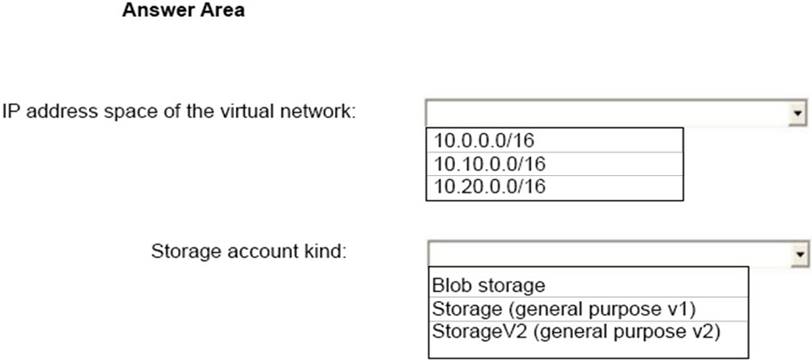

6. HOTSPOT

You need to provision the resources in Azure to support the virtual machine that will be migrated from the New York office.

What should you include in the solution? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point. Hot Area:

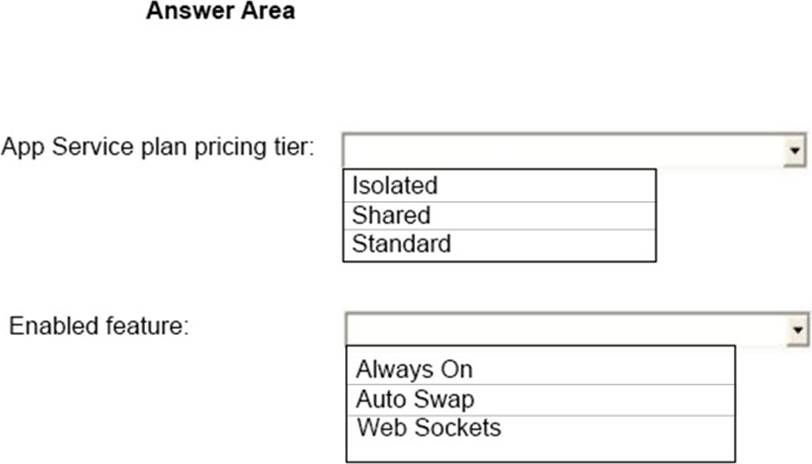

7. HOTSPOT

You need to implement App2 to meet the application? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

8. Note: This question is part of a series questions that present the same scenario. Each question inthe series contains a unique solution that might meet the stated goals. Some question sets mighthave more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, thesequestions will not appear in the review screen.

You manage a virtual network named Vnet1 that is hosted in the West US Azure region. VNet hosts two virtual machines named VM1 and VM2 run Windows Server. You need to inspect all the network traffic from VM1 to VM2 for a period of three hours. Solution: From Azure Network Watcher, you create a connection monitor. Does this meet the goal?

9. Note: This question is part of a series questions that present the same scenario. Each question inthe series contains a unique solution that might meet the stated goals. Some question sets mighthave more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, thesequestions will not appear in the review screen.

You manage a virtual network named Vnet1 that is hosted in the West US Azure region. VNet hosts two virtual machines named VM1 and VM2 run Windows Server. You need to inspect all the network traffic from VM1 to VM2 for a period of three hours. Solution: From Azure Monitor, you create a metric on Network In and Network Out. Does this meet the goal?

10. Note: This question is part of a series questions that present the same scenario. Each question inthe series contains a unique solution that might meet the stated goals. Some question sets mighthave more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, thesequestions will not appear in the review screen.

You manage a virtual network named Vnet1 that is hosted in the West US Azure region. VNet hosts two virtual machines named VM1 and VM2 run Windows Server. You need to inspect all the network traffic from VM1 to VM2 for a period of three hours. Solution: From Performance Monitor, you create a Data Collector Set (DCS). Does this meet the goal?

11. Note: This question is part of a series questions that present the same scenario. Each question inthe series contains a unique solution that might meet the stated goals. Some question sets mighthave more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, thesequestions will not appear in the review screen.

Your company registers a domain name of contoso.com.

You create an Azure DNS zone named contoso.com, and then you add an A record to the zone for a host named www that has an IP address of 131.107.1.10. You discover that Internet hosts are unable to resolve www.contoso.com to the 131.107.1.10 IP address. You need to resolve the name resolution issue. Solution: You modify the SOA record in the contoso.com zone.

Does this meet the goal?

12. Note: This question is part of a series questions that present the same scenario. Each question inthe series contains a unique solution that might meet the stated goals. Some question sets mighthave more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, thesequestions will not appear in the review screen.

Your company registers a domain name of contoso.com.

You create an Azure DNS zone named contoso.com, and then you add an A record to the zone for a host named www that has an IP address of 131.107.1.10.

You discover that Internet hosts are unable to resolve www.contoso.com to the 131.107.1.10 IP address.

You need to resolve the name resolution issue.

Solution: You modify the name servers at the domain registrar.

Does this meet the goal?

13. Note: This question is part of a series questions that present the same scenario. Each question inthe series contains a unique solution that might meet the stated goals. Some question sets mighthave more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, thesequestions will not appear in the review screen.

Your company registers a domain name of contoso.com.

You create an Azure DNS zone named contoso.com, and then you add an A record to the zone for a host named www that has an IP address of 131.107.1.10.

You discover that Internet hosts are unable to resolve www.contoso.com to the 131.107.1.10 IP address.

You need to resolve the name resolution issue.

Solution: You create a PTR record for www in the contoso.com zone.

Does this meet the goal?
