Aruba Switching Fundamentals HPE2-Z39 Practice Test

1. A network administrator needs to configure Virtual Switching Framework (VSF) for the first time on an ArubaOS switch. The administrator enters this command:
Swich-1(config)# vsf member 1 link 1 a23,a24
The administrator then wants to provision member 2 settings.
What must the administrator do before provisioning these settings?

2. An Aruba Virtual Switching Framework (VSF) fabric has 10GbE interfaces assigned to its VSF link. The network administrator wants to change the link to use 40GbE interfaces. Which procedure follows the best practices and requirements to set up the VSF links?

3. Which settings are required on ArubaOS switches for Aruba AirWave to discover, monitor, and manage them?

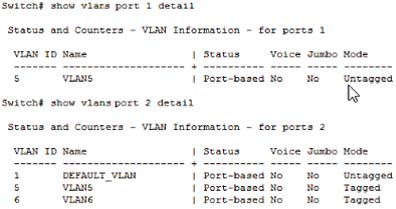

4. Refer to the exhibit.


This ArubaOS switch receives traffic without a VLAN tag on a switch port 1. The traffic is destined to a MAC address learned on port 2. What does the switch do with the traffic?

5. Which devices must support Multi-User Multiple Input Multiple Output (MU MIMO) in order for an AP to transmit to multiple clients simultaneously?

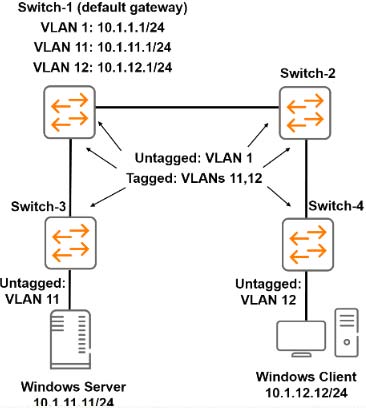

6. Refer to the exhibit.


The ArubaOS switches were at default settings. The network administrator configures the VLANs and IP addresses as shown in the exhibit. All inter switch links are untagged for VLAN 1 and tagged for VLANs 11 and 12. There is no additional configuration performed on the switches. The Windows Server and Windows Client are configured to use Switch-1 as their default gateway.
How does this configuration affect the network topology?

7. A company wants to use Zero Touch Provisioning (ZTP) to provision new ArubaOS switches. Which AirWave settings must match the switch default SNMP and Telnet/SSH password settings?

8. What is one requirement to combine Aruba 5400R zl2 Series switches in a Virtual Switching Framework (VSF) fabric?

9. What is the effect if a network administrator sets a spanning tree priority on an ArubaOS switch interface?

10. A port on an ArubaOS switch currently has its default VLAN assignment. The network administrator wants the port to continue to be part of the default VLAN. The administrator also wants the port to support VLANs 2 and 3.
What should the administrator do to accomplish this?

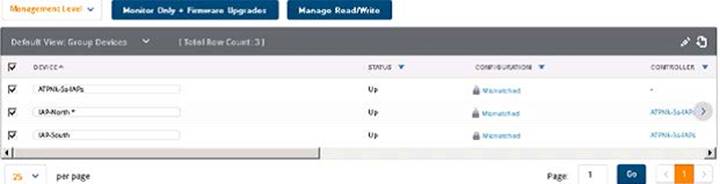

11. Refer to the exhibit.


An Aruba Instant cluster is added in Aruba AirWave. A network administrator needs to change the cluster management level to Manage Read "Write. The exhibit shows the current status for the cluster.
What should the administrator do before changing the management level?

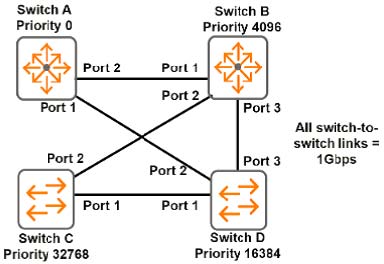

12. Refer to the exhibit.


The switches shown in the exhibit are ArubaOS switches that implement RSTP. The switches are configured with the spanning tree priorities shown in the exhibit, and they use their default costs on ports. Based on the topology, which port is a root port?

13. A network administrator connects several new Aruba Instant APs (at factor/ defaults) to a switch. After waiting several minutes for the cluster to form, the administrator is ready to provision the cluster. The VLAN on the ports connected to the APs has no DHCP services.
How can the administrator contact the Instant UI and provision the APs with static IP addresses?

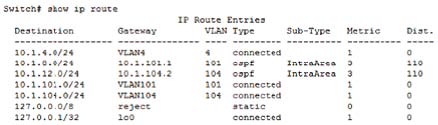

14. Refer to the exhibit.


An ArubaOS switch has the routing table shown in the exhibit. A network administrator then enters this command:
Switch (config) # ip routs 10.0.0.0/8 10.1.104.2
After the administrator enters this command, packets arrive that are destined for 10.1.8.8 and 10.1.8.13.
What does the switch do with this traffic?

15. A network administrator configures LLDP-MAD on an Aruba Virtual Switching Framework (VSF) fabric.
The administrator needs to enter an SNMP community string after v2c in this command:
Switch :(config)# vat lldp-rnad ipv4 10.1.0.2 v2c
Which SNMP community string should the administrator enter?

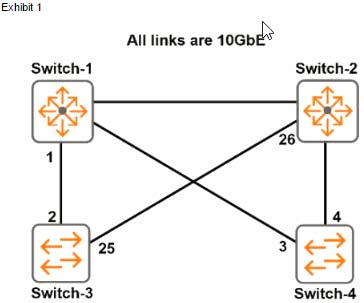

16. Refer to the exhibits.

Exhibit2 shows the spanning tree portion of the running-config for each switch.
What are two ports with the alternate role?

17. A switch receives a broadcast frame in VLAN 2 on link aggregation, trk1. How does the switch handle the broadcast?

18. Refer to the exhibit.


A network administrator enters these commands and misconfigures the link aggregations:
Swicth-1(config)# trunk 1-2 trk1 1acp
Swicth-1(config)# trunk 3-4 trk2 1acp
Swicth-2(config)# trunk 1-2 trk1 1acp
Swicth-3(config)# trunk 1-2 trk1 1acp
Which behavior does Switch-1 exhibit on its link aggregations?

19. Refer to the exhibit.


Switch-1 and Switch -2 have the Virtual Switching Framework (VSF) settings shown in the exhibits. The administrator then connects the switches together on the interfaces in the VSF link. The administrator first enables VSF on Switch-1 and confirms the reboot. After Switch-1 reboots, the administrator enables VSF on Switch-2 and confirms the reboot.
What happens?

20. A network administrator wants to apply a critical PoE priority to any ArubaOS switch port that connects to an Aruba AR The priority should be applied dynamically based on LLDP messages received from the AP.
Which step should the administrator take to meet this goal?
