1. After the root bridge is elected on an STP network, which of the following parameters may be compared by ports on non-root bridge nodes to elect the root port? (Select all that apply)

PID of a port on the local device

Root path cost (RPC)

BID of the device that sends BPDUs

PID of a port on the device that sends BPDUs

2. In TCP/IP-based end-to-end communication, only the source and destination hosts process the header information added at the transport layer. Routers along the path will definitely not process this information.

TRUE

FALSE

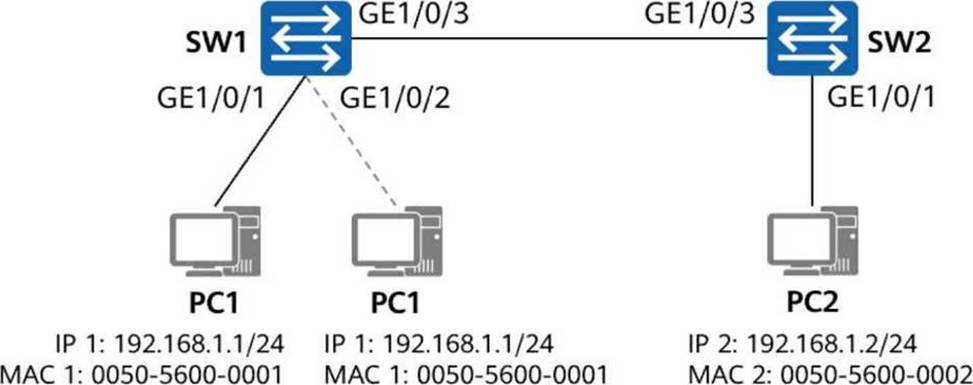

3. The figure shows the simplified topology of an enterprise campus network. On this network, the aging time of dynamic MAC address entries on switches is 300 seconds.

The administrator connects PC1 to GE1/0/1 of SW1 and successfully pings the IP address of PC2 from PC1. Then, the administrator disconnects the Ethernet cable of PC1 from GE1/0/1 of SW1, immediately connects the cable to GE1/0/2 of SW1, and pings the IP address of PC2 from PC1.

Which of the following operations does SW1

perform after receiving a data frame from PC1 when PC1 is connected to GE1/0/2 of SW1?

SW1 saves the mapping between the MAC address of PC1 and GE1/0/1, and also keeps the mapping between the MAC address of PC1 and GE1/0/2.

SW1 saves the mapping between the MAC address of PC1 and GE1/0/2 and deletes the mapping between the MAC address of PC1 and GE1/0/1.

SW1 deletes all MAC address entries and relearns them from all ports.

SW1 does not update the MAC address table until the original entry ages out.

4. The administrator configures an Eth-Trunk in LACP mode between two switches, and sets the maximum number of active links in the Eth-Trunk to 3 and the number of remaining standby links to 1. If one of the active links fails, the two switches automatically adjust the number of active links to 2 through negotiation, and the standby link remains in the standby state.

TRUE

FALSE

5. On an STP network, an administrator wants SW2 to be elected as the root bridge.

Which of the following methods can be used to achieve this goal?

Set a lower port priority on SW2.

Set a higher system priority on SW2.

Set a lower system priority on SW2.

Set a lower root path cost on SW2.

6. In the STP topology shown in the figure, all links have the same path cost, and SW1 is the root bridge.

Which of the following ports will become designated ports? (Select all that apply)

GE1/0/2 of SW2

GE1/0/1 of SW2

GE1/0/3 of SW3

GE1/0/1 of SW4

7. The essence of communication is the transmission and exchange of information between two or more points. The three elements of communication are the sender, content, and transmission channel of the information. The receiver of the information is not included among these elements.

TRUE

FALSE

8. If the neighbor relationship between R1 and R2 has reached the Full state in OSPF, which of the following statements are true? (Select all that apply)

R1 and R2 have different router IDs.

R1 and R2 belong to the same area.

R1 and R2 use the same process I

R1 and R2 have the same LSDB in the same area.

9. In the figure, both PC1 and PC2 belong to VLAN 10. Interface GE1/0/1 on SW1 is a trunk interface with the default PVID, and interface GE1/0/2 on SW1 is an access interface in VLAN 10.

Which of the following statements are true about the forwarding of data frames between PC1 and PC2? (Select all that apply)

After receiving the data frame sent from PC1 to PC2, SW1 adds the VLAN 10 tag to the data frame and then accepts the data frame.

SW1 accepts the data frame sent from PC1 to PC2, but discards the data frame returned from PC2 to PC1.

The data frame processed inside SW1 does not carry any VLAN tag.

SW1 removes the VLAN 10 tag from the data frame before forwarding it from GE1/0/2 to PC2.

10. On a switched network where STP is enabled on all devices, when a downstream device detects a topology change, it continuously sends configuration BPDUs to the upstream device until the root bridge is informed of the topology change.

TRUE

FALSE

11. On the network shown in the figure, all switches run STP. All links have a path cost of 20, and SW1 is the root bridge.

What is the root path cost (RPC) of SW4?

20

40

60

80

12. The undo command can be used in the CLI of a Huawei device to restore default settings, disable functions, or delete configurations.

Which of the following are correct undo commands? (Select all that apply)

<HUAWEI> system-view [HUAWEI] undo system-view <HUAWEI>

[HUAWEI] interface GE 1/0/1 [HUAWEI-GE1/0/1] ip address 10.12.1.1 24 [HUAWEI-GE1/0/1] undo ip address

[HUAWEI] interface GE 1/0/1 [HUAWEI-GE1/0/1] undo portswitch [HUAWEI-GE1/0/1]

[HUAWEI] sysname TEST [TEST] undo sysname [HUAWEI]

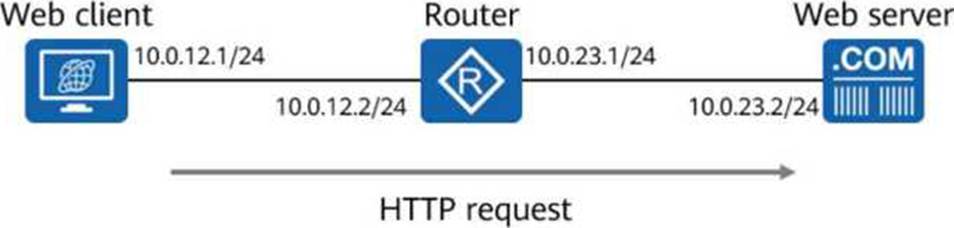

13. In the figure, a web client sends an HTTP request to a web server, and the router in between performs operations on the HTTP request.

Which of the following statements are false about the router’s operations? (Select all that apply)

The router encapsulates a new destination IP address before sending the data.

The router removes the data frame header and checks the destination IP address.

The router searches the IP routing table based on the port number in the transport layer header.

The router checks the content of the application-layer data and determines the port from which to send the data.

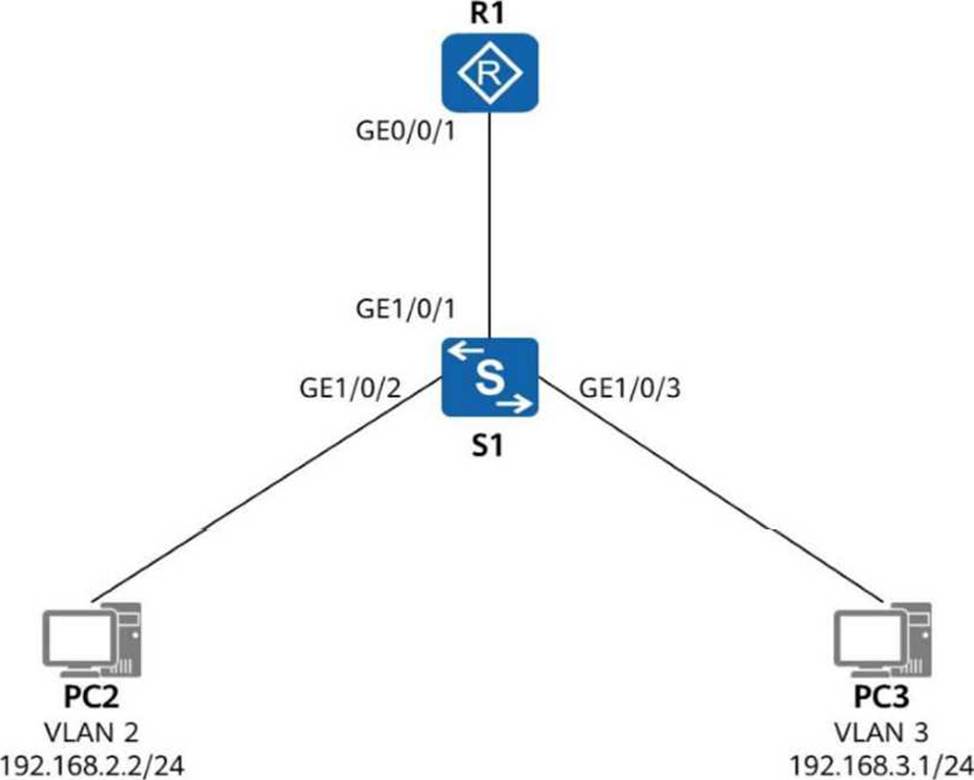

14. On the network shown in the figure, R1 serves as the gateway for PC2 and PC3, and directly connects to S1 through a physical link. GE1/0/1 on S1 is configured as a trunk interface and permits traffic of VLANs 2 and 3. Its PVID retains the default value.

Which of the following statements are true if PC2 and PC3 can communicate with each other? (Select all that apply)

Sub-interfaces GE0/0/1.2 and GE0/0/1.3 have been created on R1.

S1 has MAC address entries of PC2 and PC3.

R1 can terminate data frames of VLAN 2 and VLAN 3.

PC2 and PC3 must be connected to different physical switches.

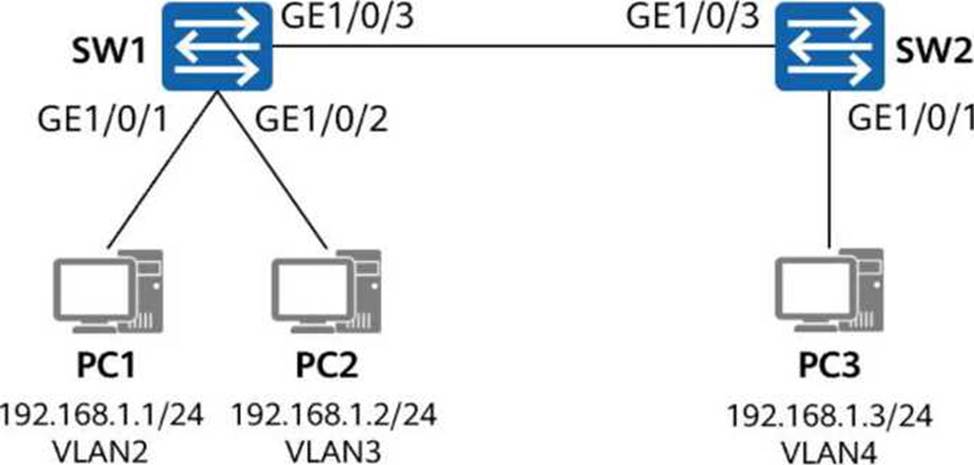

15. On the network shown in the figure, GE1/0/1 and GE1/0/2 of SW1 are access interfaces, and their PVIDs are VLAN 2 and VLAN 3 respectively. GE1/0/1 of SW2 is also an access interface, and its PVID is VLAN 4.





Which of the following configurations on SW1 and SW2 can ensure that data packets sent from PC1 and PC2 can reach PC3?

Configure GE1/0/3 of SW2 as a hybrid interface, add it to VLAN 4 in untagged mode, and retain the default PVI

Configure GE1/0/3 of SW1 as a hybrid interface, add it to VLAN 2 and VLAN 3 in untagged mode, and set its PVID to VLAN 4.

Configure GE1/0/3 of SW2 as a trunk interface, configure it to allow packets from VLAN 4 to pass through, and set its PVID to VLAN 4.

Configure GE1/0/3 of SW1 as a trunk interface, configure it to allow packets from VLAN 2 and VLAN 3 to pass through, and set its PVID to VLAN 4.

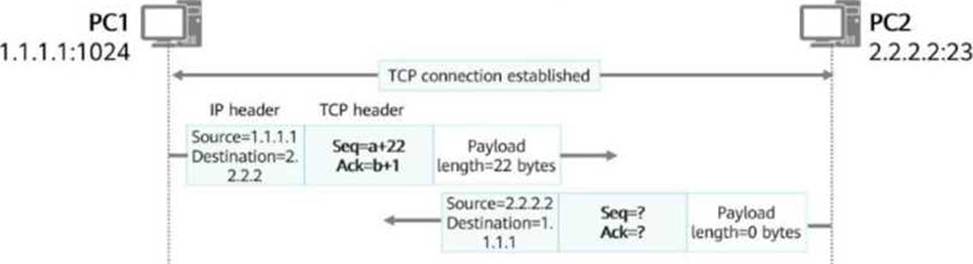

16. In the figure, a TCP connection has been established between PC1 and PC2.





After PC1 sends a data segment to PC2, which of the following is the acknowledgment number in the packet returned by PC2?

b+23

a+44

b+1

a+22

17. You can enter a question mark (?) in the CLI of a Huawei switch to obtain online help.

Which of the following statements is true about the meaning of in the output of the command sysname SW1?

There are too many parameters in that position.

There is no keyword or parameter in that position.

The entered keywords are incorrect.

The command is incomplete.

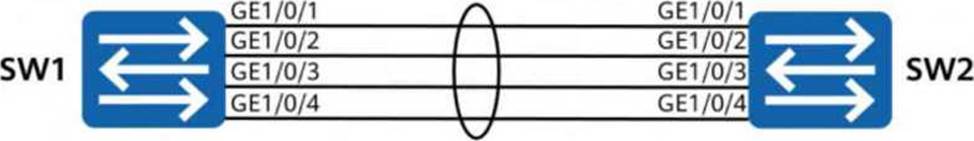

18. Four links between two switches establish an Eth-Trunk in manual mode, and the bandwidth of each link is 1 Gbit/s. One of the links fails.

Which of the following statements are true about this scenario? (Select all that apply)

The Eth-Trunk interfaces on the switches are still in the Up state.

The available link bandwidth between the switches is 3 Gbit/s.

The service traffic originally carried by the faulty link stops being forwarded by the switches until the faulty link recovers.

All TCP sessions established over the Eth-Trunk are immediately interrupted and re-established.

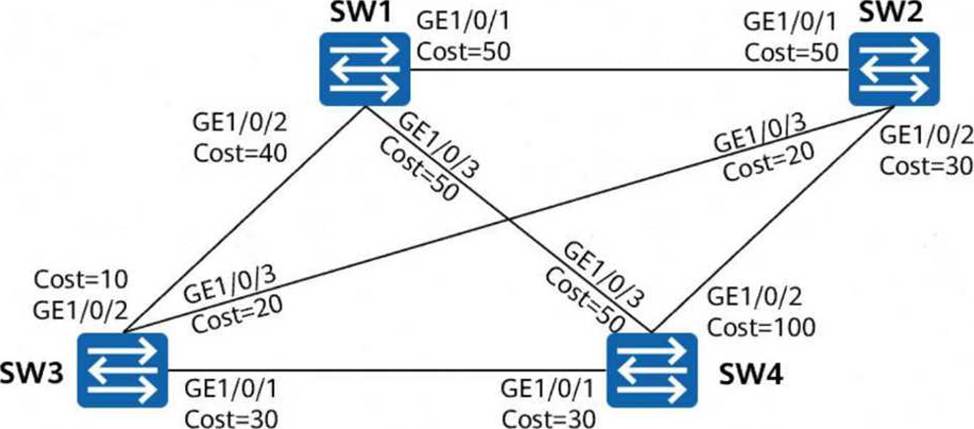

19. On the switched network shown in the figure, STP is enabled on all devices. SW1 is the root bridge. The port costs are shown in the figure. Other parameters retain the default values.

After the network is stable, which of the following paths is used by SW1 to send traffic to SW4?

SW1 → SW2 → SW4

SW1 → SW3 → SW4

SW1 → SW2 → SW3 → SW4

SW1 → SW4

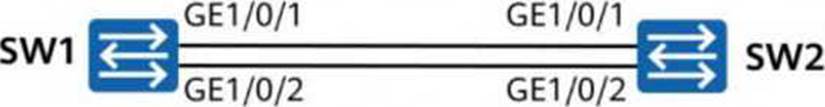

20. On the network shown in the figure, the administrator creates Eth-Trunk 1 in manual mode on SW1 and SW2, and adds GE1/0/1 and GE1/0/2 on both switches to the Eth-Trunk. After the administrator runs the display interface brief command on SW1, the administrator finds that GE1/0/1 is Up and GE1/0/2 is Down.

Which of the following statements is true about this scenario?

Eth-Trunk 1 is Up because it is Up as long as one member interface is Up.

Eth-Trunk 1 is Down because the states of member interfaces must be the same in manual mode.

Eth-Trunk 1 is Down because it has only two member interfaces and the minimum number of active links is not reached after one member interface is Down.

Eth-Trunk 1 is Down because all member interfaces of the Eth-Trunk must be Up.
