1. CollabCorp is a global company with two clusters, emea.collab corp and apac.collab.corp. URI dialing is implemented and working in each cluster. The company configured routing between clusters to make inter-cluster calls via URI. but this is not working as expected.

Which two configuration elements should be checked to resolve this issue? (Choose two.)

2. Due to a shortage of physical interfaces on a device the administrator requires that a loopback for RTP is used.

Which command is required when using a loopback interface for RTP?

3. A customer is using a SIP trunk to route calls to ITSP to decrease the possibility of downtime, the customer invested in a failover device.

How does the customer ensure reachability to ITSP, so that if one device on ITSP fails, the calls will be routed to another device?

4. You see the voice register pool 1 command in your Cisco Unified Communications Manager Express configuration.

Which configuration is occurring in this section?

5. If all patterns below are configured in Cisco Unified Communications Manager which would be used when dialing the pattern “123”?

6. What is first preference condition matched in a SIP-enabled incoming dial peer?

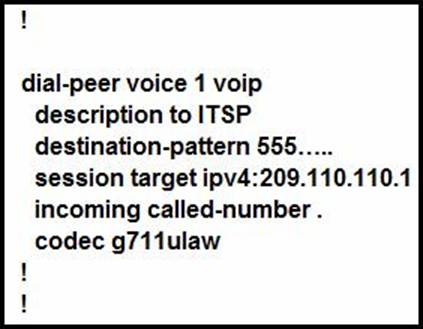

7. Refer to the exhibit.

An engineer configures Cisco Unified Border Element to connect the enterprise VoIP network with a SIP telephony provider. Calls are not working in either direction.

What must be configured in the dial peer 1 to fix the issue?

8. A support engineer is troubleshooting a voice network.

When conducting a search for call setup details related to calling search space issues, which trace files should be investigated?

9. Which description of RTP timestamps or sequence numbers is true?

10. Which IOS command creates a SIP-enabled dial peer?

11. An administrator is implementing a new dial-plan on Cisco Unified Border Element. The administrator must ensure that incoming dial-peers are matched based on the IP address from where the incoming request originates.

Which dial-peer configuration should be applied to accomplish this requirement?

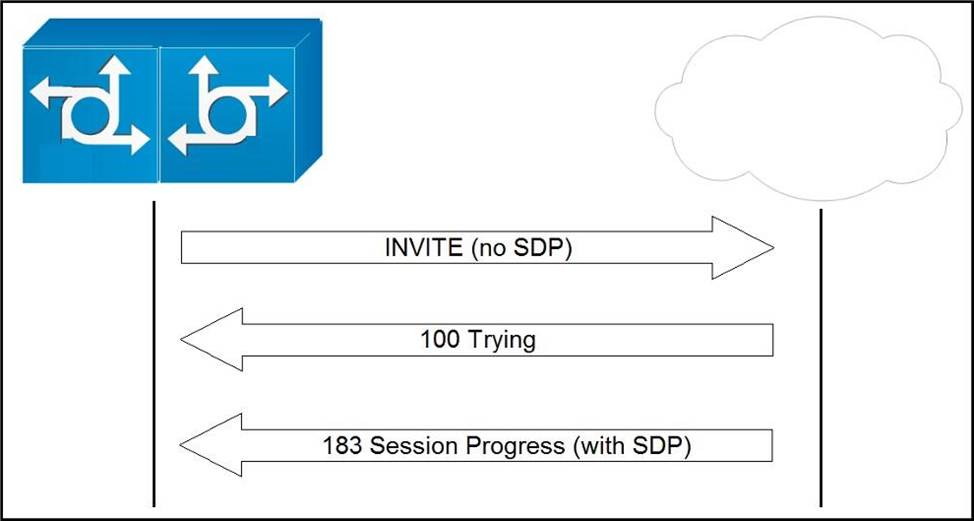

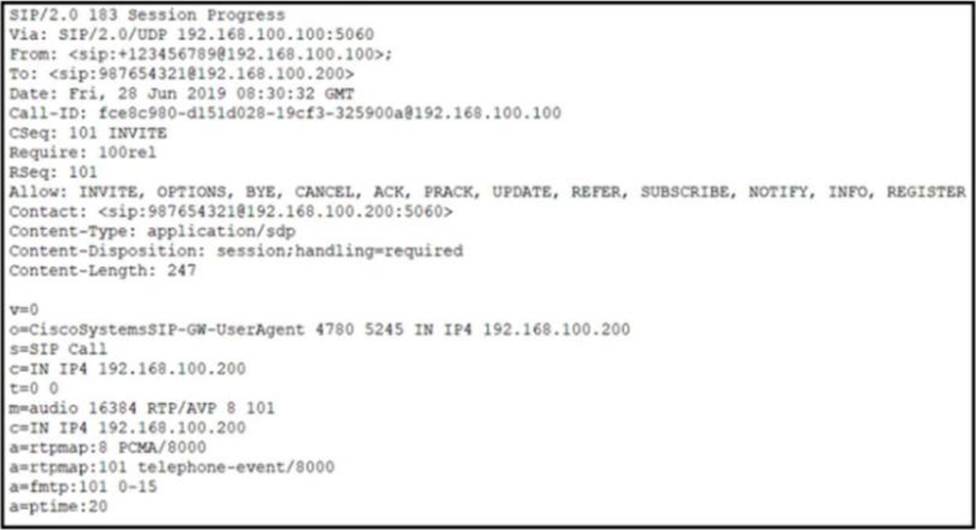

12. Refer to the exhibit.

While troubleshooting call failures on the Cisco Unified Border Element, an administrator notices that messages are being sent to the service provider, but there is no response The administrator later learns that this SIP provider does not support PRACK.

Which header should be removed from the SIP message to resolve this issue?

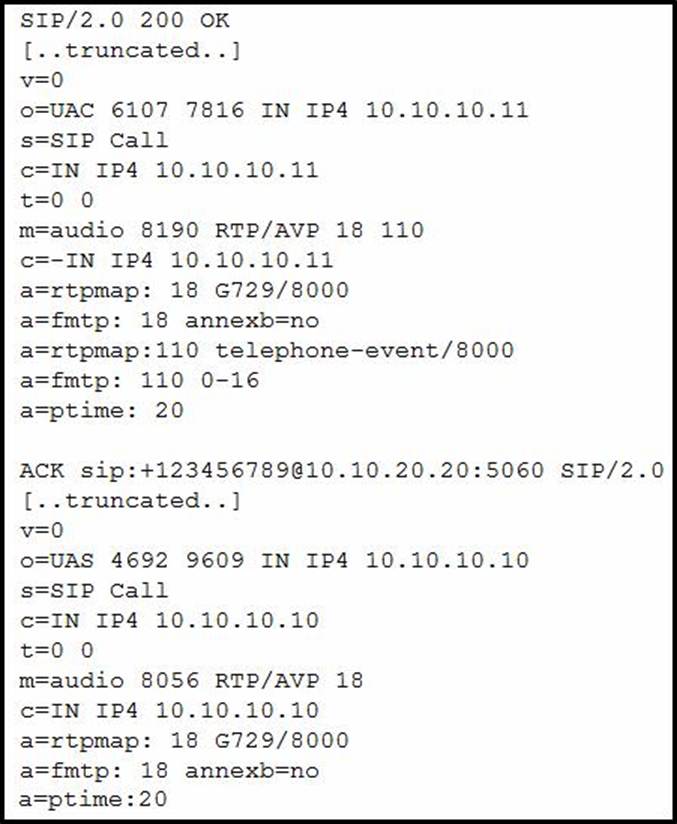

13. Refer to the exhibit.

Users report that when they dial to Cisco Unity Connection from an external network, they cannot enter any digits.

Assuming only in-band DTMF is supported, what is a reason for this malfunction?

14. A customer routes PSTN calls to ITSP through a SIP trunk on Cisco UCM that forwards and receives calls to and from ITSP. ITSP is set to send an E.164 number when the customer's extension is four digits.

Which action should be taken to route the incoming calls to four-digit extensions?

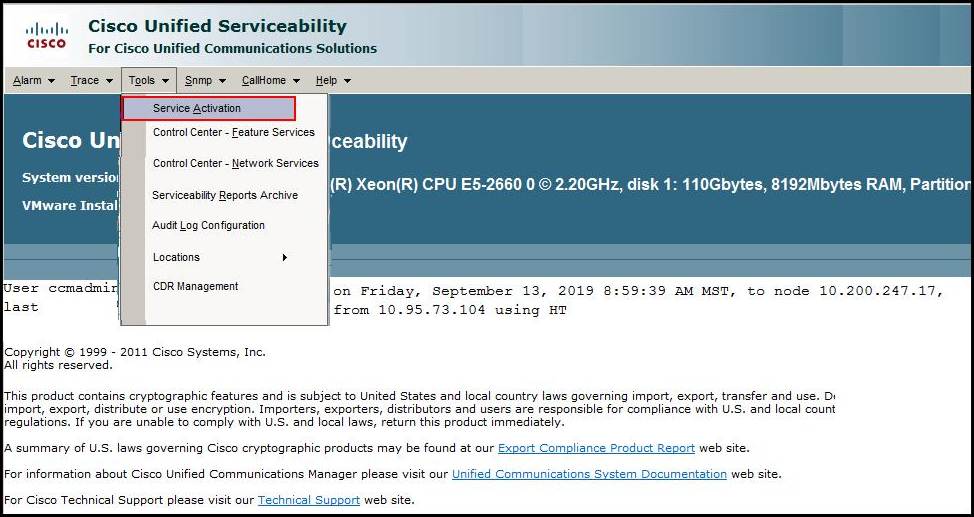

15. Refer to the exhibit.

An administrator is troubleshooting a situation where a call placed from a phone registered to Cisco Unified Communications Manager does not complete. The administrator wants to use the Dialed Number Analyzer on Cisco Unified CM to check which translation pattern the call is matching. However, when logging in to Cisco Unified Serviceability there is no option for Dialed Number Analyzer under the tool menu.

Which two steps must be performed to resolve this issue? (Choose two.)

16. Signal number reach call phone that not answered are leaving voicemails on the cell phone rather the corporate mailbox.

Which two options will resolve this issue? (Choose two.)

17. End users at a new site report being unable to hear the remote party when calling or being called by users at headquarters. Calls to and from the PSTN work as expected.

To investigate the SIP signaling to troubleshoot the problem, which field can provide a hint for troubleshooting?

18. An engineer must configure call queuing under a Hunt Pilot.

After the engineer receives the audio file that will be played to callers during queuing, which two steps should be taken to complete the configuration? (Choose two.)

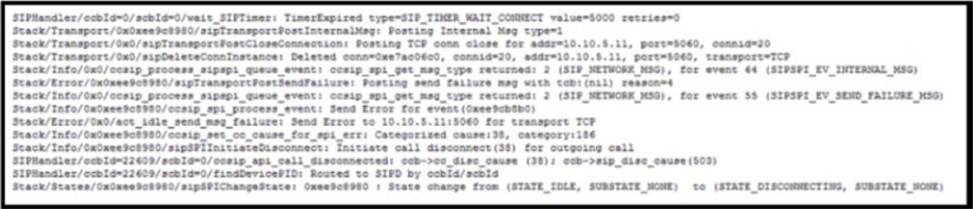

19. Refer to the exhibit.

An administrator has configured a SIP trunk between two Cisco UCM clusters. For calls that should use the trunk, the calls fail with a fast busy. The administrator checks the Cisco CallManager SDL traces and found that the cluster to which the calling device is registered never sends an INVITE to the destination cluster. The administrator also verifies that all nodes from both clusters are powered on, and the CallManager service is running.

How is this issue resolved?

20. An engineer is troubleshooting Cisco Device Mobility and find that the phone has roamed to a building that is assigned to a different device pool but has not changed its device pool accordingly.

What action resolves the issue?

21. Which services are needed to successfully implement Cisco Extension Mobility in a standalone Cisco Unified Communications Manager server?

22. What is a component of Cisco Unified Mobility?

23. An engineer must route all SIP calls in the form of <user>@example.com to the SIP trunk gateway corporate local.

Which two SIP route patterns can be used to accomplish this task? (Choose two.)

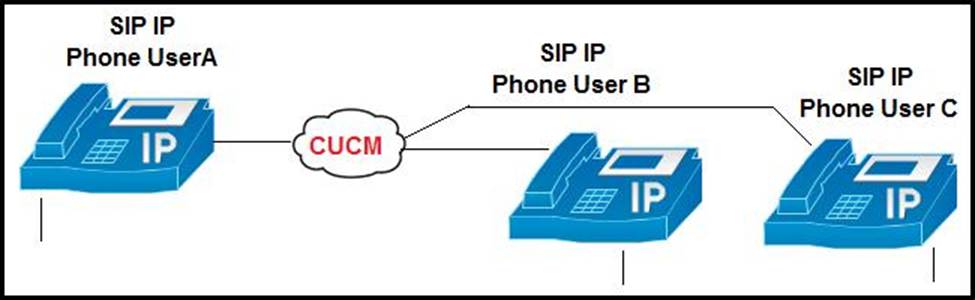

24. 1.Refer to the exhibit.

In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C.

Which two scenarios are correct? (Choose two.)

25. An engineer is configuring a call park feature in Cisco Unified Communications Manager Express.

Which command does the engineer use to ensure that the call is reverted to the user after 60 seconds?

26. Which configuration element of a hunt group allows for changing Calling Party Transformations settings?

27. Refer to the exhibit.

An administrator is troubleshooting why users are not hearing audio when dialing long distance numbers across their Cisco Unified Border Element. The customer’s carrier has a requirement that dialing long distance requires an access code to be entered.

Looking at the exhibit, what two actions can be taken to correct signaling? (Choose two.)

28. Which two extended capabilities must be configured on dial peers for fast start-to-early media scenarios (H.323 to SIP interworking)? (Choose two.)

29. What is the relationship between partition, time schedule, and time period in Time-of-Day routing in Cisco Unified Communications Manager?

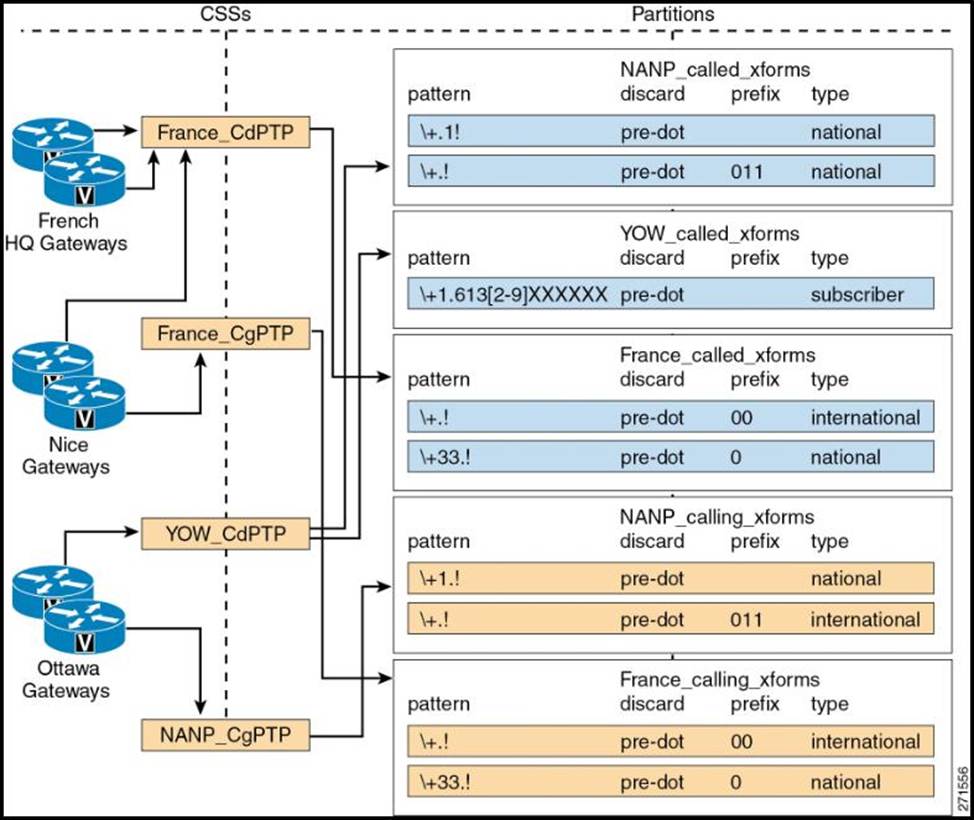

30. Refer to the exhibit.

Within the North American Numbering Plan, gateways located in Ottawa, Canada and marked as “YOW” are assigned to the Calling Party Transformation CSS NANP_CgPTP, which contains partition NANP_calling_xforms.

What is the calling-party number and the numbering type if the calling user +1613-555-1234 dials the number?

31. When the services key is pressed Cisco Extension Mobility does not show up.

What is the cause of the issue?

32. Which two statements are correct with respect to the Client Matter Code setting in the route pattern configuration? (Choose two.)

33. A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105).

What is the most specific route pattern that can be configured to block only the numbers in this range?

34. The administrator of ABC company is troubleshooting a one-way audio issue for a call that uses H.323 protocol (slow-start mode). The administrator requests that you provide the IP and port information of the Real-Time Transport Protocol traffic that had the one-way audio call.

You gather the H.225 and H.245 messages for one of the one-way audio calls.

Where can you find the RTP IP and port information for both sides? (Note: This call flow has not invoked any media resources like MTP or transcoders).

35. Which top-level IOS command is needed to begin the configuration of a Cisco Unified Communications Manager Express gateway to enable phones to be registered via SIP?

36. Refer to the exhibit.

Users report that outbound PSTN calls from phones registered to Cisco Unified Communications Manager are not completing. The local service provider in North America has a requirement to receive calls in 10-digit format. The Cisco Unified CM sends the calls to the Cisco Unified Border Element router in a globalized E.164 format. There is an outbound dial peer on Cisco Unified Border Element configured to send the calls to the provider. The dial peer has a voice translation profile applied in the correct direction but an incorrect voice translation rule applied, which is shown in the exhibit.

Which rule modified DNIS in the format that the provider is expecting?

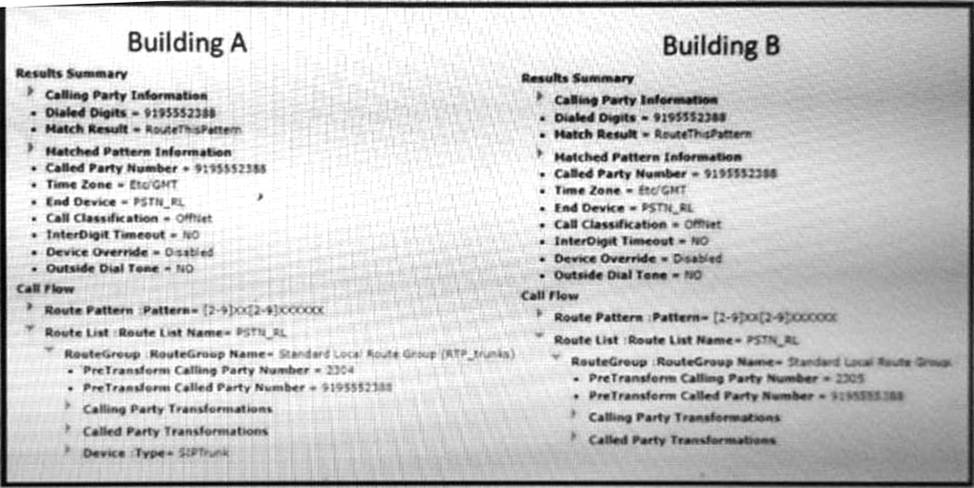

37. Refer to the exhibit.

Refer to the exhibit. A standard local route group is configured for long-distance calls. Calls from building A succeed, but calls from building B fail. On the system. Each building has is own device pool. The DNA tool is used to test the configuration.

How is this issue resolved?

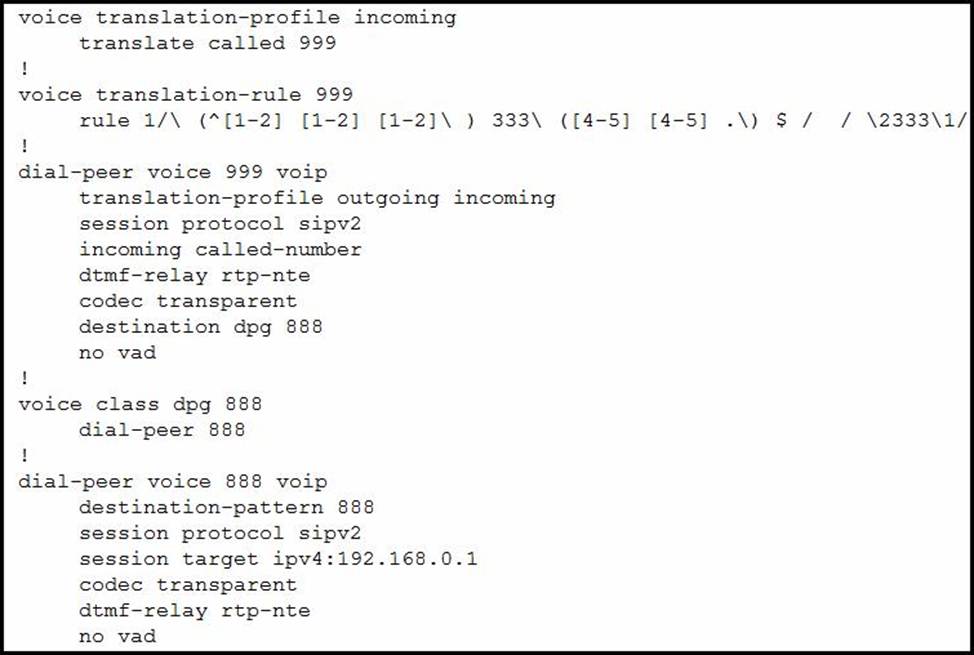

38. Refer to the exhibit.

Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number “222333444” and Cisco Unified Communications Manager is expecting the called number to be delivered as “444333222”. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit.

Which action must the administrator take to fix the issue?

39. Which call pickup feature allows users to pick up incoming calls in a group that is associated with their own group?

40. The Cisco Unified Communications Manager Dialed Number Analyzer allows analysis of calls from which two devices? (Choose two.)

41. ABC company has decided to implement hunt groups to help distribute calls between members. In order to implement this, administrator must configure hunt list, hunt group, and line groups on Cisco UCM.

Which distribution algorithms should the administrator implement?

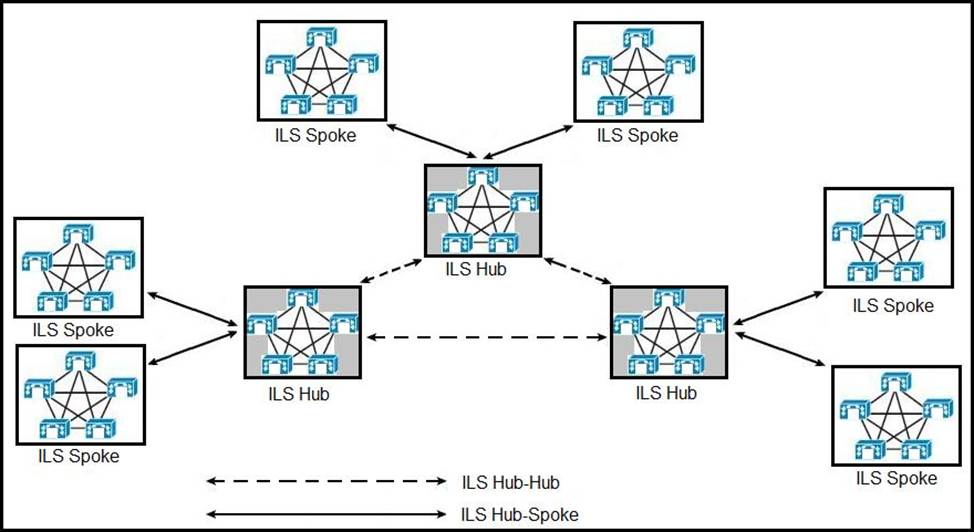

42. Refer to the exhibit.

How many maximum hops can an ILS update traverse?

43. A user in location X dials an extension at location Y. The call travels through a QoS-enabled WAN network, but the user experiences choppy or clipped audio.

What is the cause of this issue?

44. When you troubleshoot H.323 call setup, which message informs you that the called party is being notified about the call?

45. When a third-party SIP Phone System is dialed inbound across a Cisco Unified Border Element, DTMF is failing. The third-party vendor accepts only out-of-band DTMF.

Which configuration should be added to the outgoing dial peer to resolve this issue?

46. For s SIP to SIP call flow, when does Cisco Unified Border Element require transcoding resources for DTMF?

47. In Cisco Unified Communications Manager globalized call routing is implemented and must confirm that it is correctly implemented without making a call.

Which tool do you use for verification?

48. Why would RTP traffic that is sent from the originating endpoint fail to be received on the far endpoint?

49. What are two configureation features of the Client matter code setting in the route pattern configuration? (Choose two.)

50. Which two descriptions of the Standard Local Route Group deployment are true? (Choose two.)
